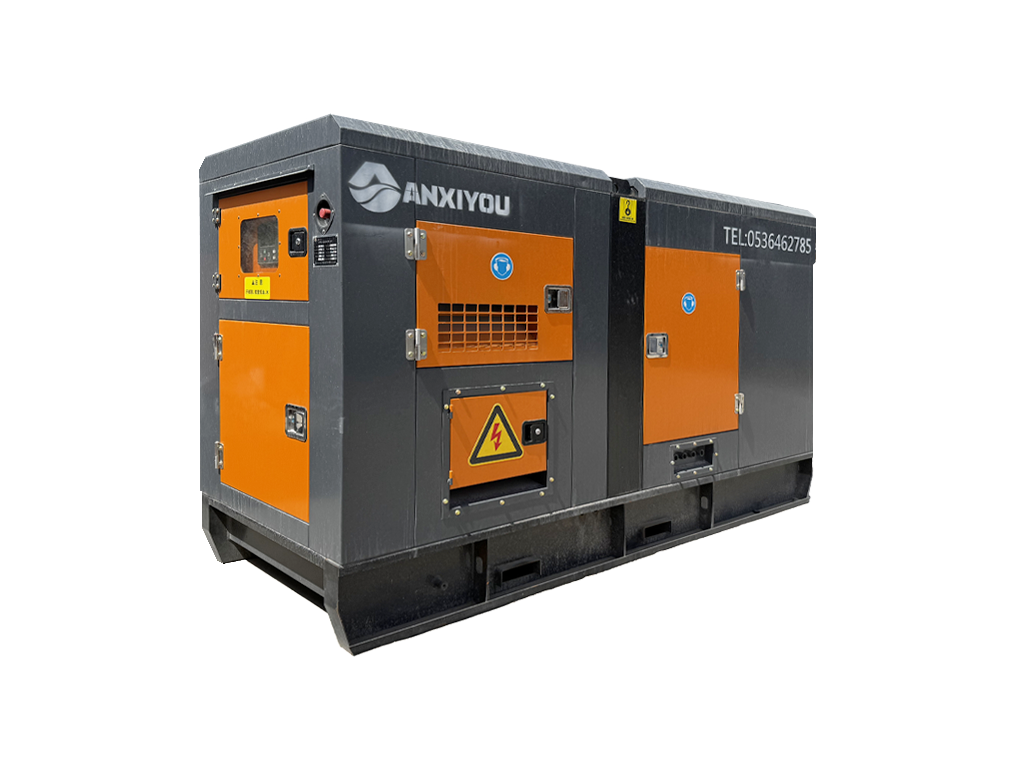

ANXIYOU 125kVA / 100kW Diesel Generator Set
- Information
- Technical parameter
Product Overview
The 125kVA / 100kW diesel generator set is a medium-power industrial-grade solution designed to provide stable and reliable electricity for commercial, industrial, and construction applications. It is suitable for both prime and standby power supply requirements.
Key Features
Equipped with a high-performance engine and premium alternator, the unit ensures stable voltage output, strong load capacity, and efficient fuel consumption. Its robust structure is designed for long service life and dependable operation under various working conditions.
Performance Advantages
The generator set delivers consistent performance under heavy or fluctuating loads and is capable of operating reliably in high-temperature and harsh environments. It offers excellent stability, safety, and durability for continuous use.
Applications
Widely used in small to medium factories, commercial buildings, construction sites, agricultural operations, and emergency backup power systems, providing a reliable and cost-effective power solution.
Product Specifications
Item | Value / القيمة | البند |
Factory Model | AXY-100CMS | طراز المصنع |
Genset Prime Power | 125KVA / 100KW | القدرة الأساسية للمولد |
Controller Pannel | SmartGen 6110CAN | لوحة التحكم |
Engine Brand | Cummins | علامة المحرك التجارية |
Engine Model | 6BT5.9-G2 | طراز المحرك |
Engine Prime Power | 115KVA / 92KW | القدرة الأساسية للمحرك |
Engine Max Power | 127KVA / 34KW | أقصى قدرة للمحرك |
Rated Speed | 1800RPM | السرعة المقدرة |
Cylinder quantity | 6 | عدد الأسطوانات |
Cylinder Arrangement | In-line | ترتيب الأسطوانات |
Aspiration | Turbocharged | نظام السحب |
Bore x Stroke | 102mm x 120mm | القطر × الشوط |
Displacement | 5.9L | الإزاحة |
Compression Ratio | 17.5:1 | نسبة الضغط |
Type Injection System | Direct Injection | نوع نظام حقن الوقود |
Speed Adjustment Method | RSV Mechanical | طريقة تنظيم السرعة |
Total Lubrication System Capacity | 16.4L | إجمالي سعة نظام التشحيم |
Fuel Consumption at 50% load | 13.5 - 14.0L/h | استهلاك الوقود عند حمل %50 |
Alternator Brand | ANXIYOU | علامة المنوب التجارية |
Alternator Model | AXY-274D | طراز المنوب |
Rated Voltage | 400V / 230V | الجهد المقدر |
Frequency | 60HZ | التردد |
Power Factor | 0.8 | معامل القدرة |
Alternator Enclosure | IP23 | درجة حماية المنوب |
Circuit Breaker Brand | CHINT | علامة قاطع الدورة |
AMPS | 180A | التيار أمبير |
Phase | Three-Phase Four-Wire | الأطوار |
Fuel Tank | ~300L | خزان الوقود |
1. The above parameters are for reference only and cannot be used as any legal basis in the contract.
2. The manufacturer has the right to adjust or change the above parameters, and the data after adjustment or change will not be notified.
