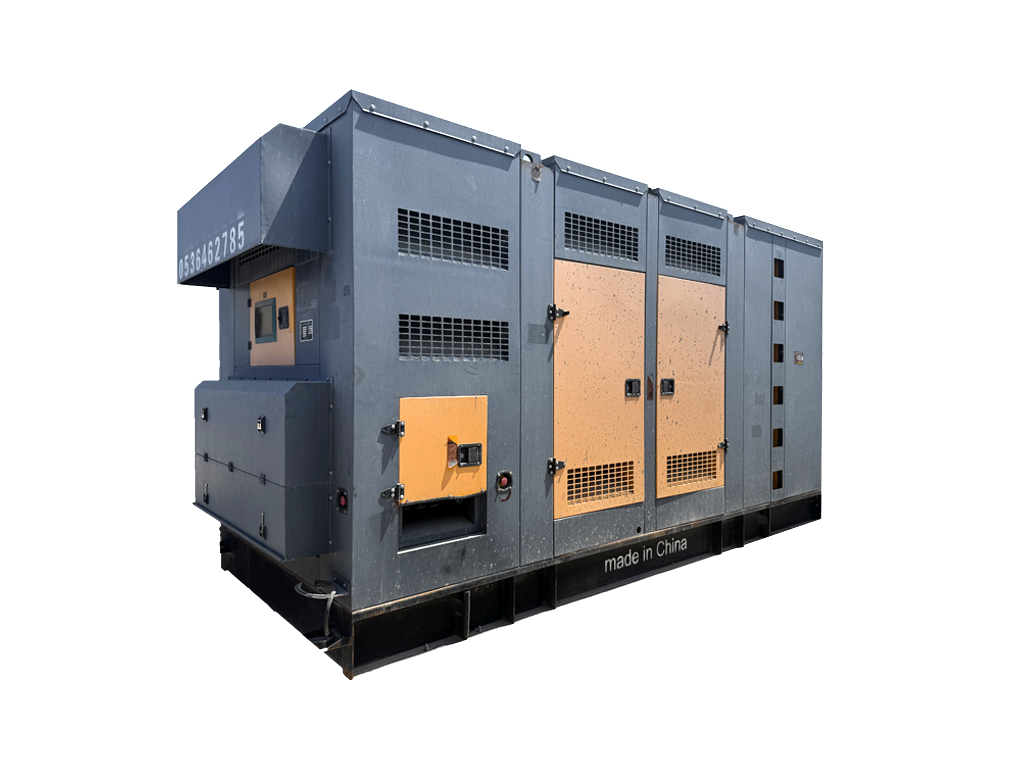

ANXIYOU 1000kVA / 800kW Diesel Generator Set
- Information
- Technical parameter
Product Overview
The 1000kVA / 800kW diesel generator set is a high-capacity industrial power solution designed for large-scale applications requiring stable and continuous electricity supply. It is widely used in factories, commercial complexes, data centers, construction projects, and critical infrastructure as either prime or standby power.
Key Features
This generator set is equipped with a high-performance engine and advanced alternator system, ensuring strong load capacity, excellent voltage stability, and reliable operation under heavy-duty conditions. The unit is designed for long-hour continuous running with optimized fuel efficiency and low vibration performance.
Performance Advantages
Built for demanding environments, the 1000kVA generator set delivers consistent output even under high ambient temperatures, dust, and complex load conditions. Its robust structure and advanced control system ensure safe, stable, and efficient operation.
Applications
Ideal for industrial manufacturing, large commercial facilities, mining operations, data centers, hospitals, and other critical power demand scenarios where uninterrupted electricity supply is essential.
Product Specifications
Item | Value / القيمة | البند |
Factory Model | AXY-1000CMS | طراز المصنع |
Genset Prime Power | 1000kVA / 800kW | القدرة الأساسية للمولد |
Engine Brand | Cummins | علامة المحرك التجارية |
Engine Model | KTA38-G2A | طراز المحرك |
Engine Prime Power | 1143kVA / 915kW | القدرة الأساسية للمحرك |
Engine Max Power | 1258kVA / 1007kW | أقصى قدرة للمحرك |
Rated Speed | 1800RPM | السرعة المقدرة |
Cylinder quantity | 12 | عدد الأسطوانات |
Cylinder Arrangement | 60° Vee | ترتيب الأسطوانات |
Aspiration | Turbocharged and Aftercooled | نظام السحب |
Bore x Stroke | 159mm x 159mm | القطر × الشوط |
Displacement | 37.8L | الإزاحة |
Compression Ratio | 14.5:1 | نسبة الضغط |
Type Injection System | Cummins PT (Direct Injection) with STC | نوع نظام حقن الوقود |
Speed Adjustment Method | Electronic Governor | طريقة تنظيم السرعة |
Total Lubrication System Capacity | 135.1L | إجمالي سعة نظام التشحيم |
Fuel Consumption at 50% load | 122.0L/h | استهلاك الوقود عند حمل %50 |
Rated Voltage | 400V / 230V | الجهد المقدر |
Frequency | 60HZ | التردد |
Power Factor | 0.8 | معامل القدرة |
Alternator Enclosure | IP23 | درجة حماية المنوب |
Phase | Three-Phase Four-Wire | الأطوار |
Weight (approx.) | ~12.5tons | الوزن تقريبًا |
1. The above parameters are for reference only and cannot be used as any legal basis in the contract.
2. The manufacturer has the right to adjust or change the above parameters, and the data after adjustment or change will not be notified.
