Long Autonomy 30kVA / 25kW Diesel Generator with 1000L Fuel Tank

  • Information
  • Technical parameter

Extended Endurance for Uninterrupted Operations

The 31.25kVA (25kW) diesel generator is a robust power solution engineered for environments where reliability cannot be compromised. By integrating a massive 1000L industrial-grade base fuel tank, this unit bridges the gap between standard backup power and long-term primary energy. It is designed to significantly reduce the logistical burden of refueling, making it the premier choice for remote sites and critical infrastructure.

Key Product Highlights

  • Exceptional Runtime: With a 1000L high-capacity tank, this unit can operate for over 150 hours at 75% load on a single fill—offering nearly a full week of autonomy for typical intermittent use.

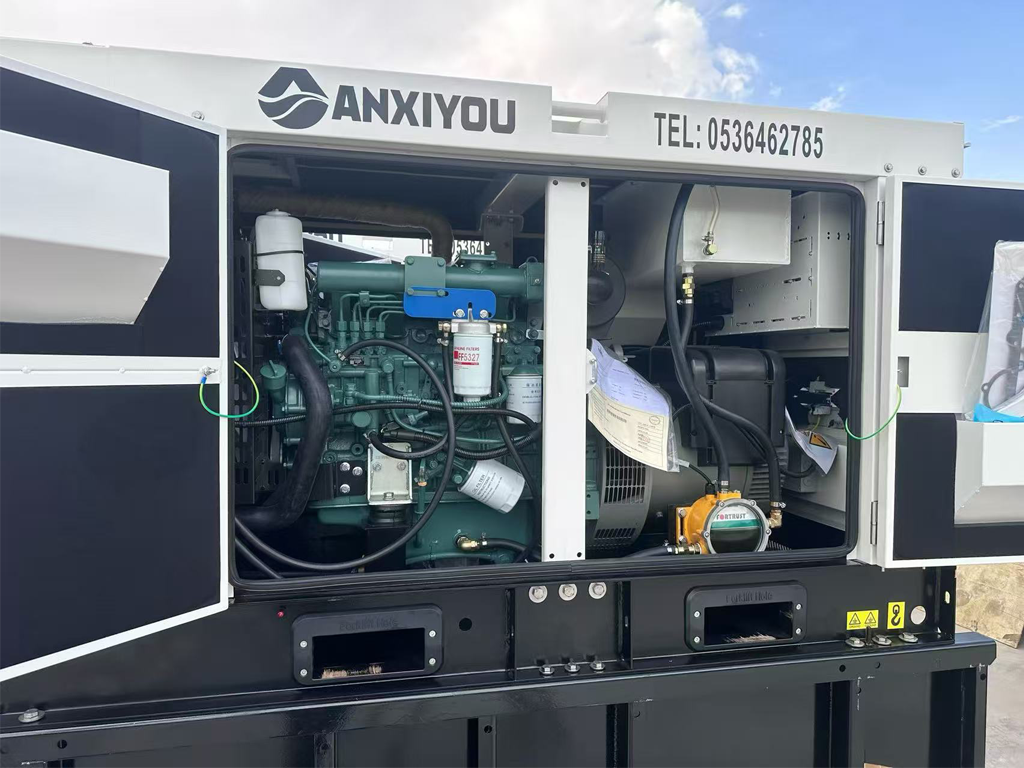

  • Heavy-Duty Power Performance: Powered by a high-torque industrial engine that delivers exceptional transient response and handles motor-starting loads with ease.

  • Reinforced All-in-One Chassis: The integrated 1000L tank is built into a heavy-duty steel base, lowering the center of gravity for safer transport and saving valuable installation space.

  • Premium Weatherproof Enclosure: Features a galvanized, powder-coated silent canopy with high-density acoustic foam, ensuring quiet operation and maximum resistance to corrosion in harsh outdoor climates.

  • Advanced Control & Connectivity: Equipped with a smart digital controller for real-time monitoring of engine health, output parameters, and precision fuel tracking with low-level alerts.

Ideal Applications

  • Telecom Hubs & Data Repeaters: Drastically reduces the frequency of high-cost refueling missions to remote or mountainous locations.

  • Off-Grid Construction & Infrastructure: Provides a stable, "set-and-forget" power source for long-term roadwork or site development.

  • Agricultural & Livestock Facilities: Ensures critical systems like ventilation and automated feeding remain active during extended outages without constant supervision.

  • Emergency Disaster Relief: Serves as a reliable, long-lasting energy station for field hospitals and command centers.


Product Specifications


ltem

Value / القيمة

البند

Factory Model

AXY-25XC

طراز المصنع

Genset Prime Power

31.25KVA / 25KW

القدرة الساسية للمولد

Factory Date

2025-12-20

تاريخ التصنيع

Controller Pannel

SmartGen 6120N

لوحة التحكم

Engine Brand

FAWDE

علمة المحرك التجارية

Engine Model

4DW92-42D

طراز المحرك

Engine Prime Power

25KVA / 31KW

القدرة الساسية للمحرك

Engine Max Power

27KVA / 34KW

أقصى قدرة للمحرك

Rated Speed

1800RPM

السرعة المقدرة

Cylinder quantity

4

عدد السطوانات

Cylinder Arrangement

Vertical ln-line

ترتيب السطوانات

Aspiration

Naturally Aspirated

نظام السحب

Bore x Stroke

92mm x 100mm

القطر ×  الشوط

Displacement

2.66L

الزاحة

Compression Ratio

17:1

نسبة الضغط

Type lnjection System

Direct lnjection

نوع نظام حقن الوقود

Speed Adjustment Method

Mechanical Governor

طريقة تنظيم السرعة

Total Lubrication System Capacity

8L

إجمالي سعة نظام التشحيم

Fuel Consumption at 50% load

~4.1L/h

استهلك الوقود عند حمل 50%

Alternator Brand

LEROY-SMOER

علمة المنوب التجارية

Alternator Model

TAL-A42-E J 6S/4

طراز المنوب

Rated Voltage

400V / 230V

الجهد المقدر

Frequency

60HZ

التردد

Power Factor

0.8

معامل القدرة

Alternator Enclosure

lP23

درجة حماية المنوب

Circuit Breaker Brand

ABB

علمة قاطع الدورة

AMPS

40A

التيار أمبير

Phase

Three-Phase Four-Wire

الطوار

Fuel Tank

1000L

خزان الوقود

Dimensions

2200mm x 900mm x 2150mm

البعاد

Weight (approx.)

~1.5tons

الوزن تقريببا

1. The above parameters are for reference only and cannot be used as any legal basis in the contract.

2. The manufacturer has the right to adjust or change the above parameters, and the data after adjustment or change will not be notified.
