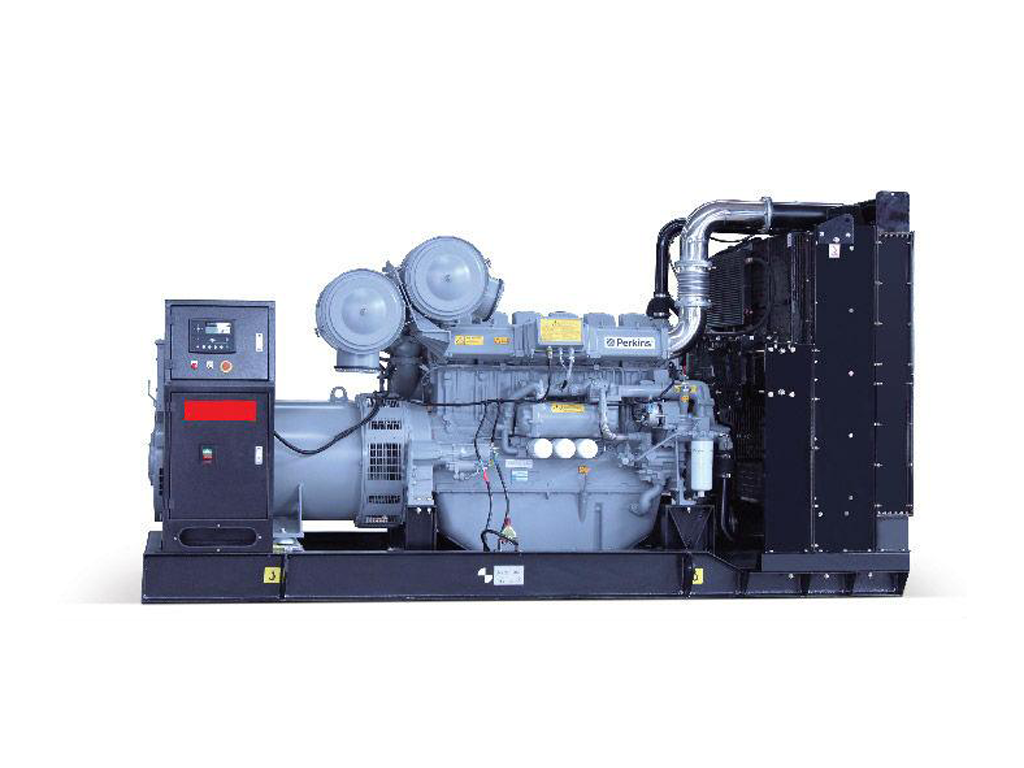

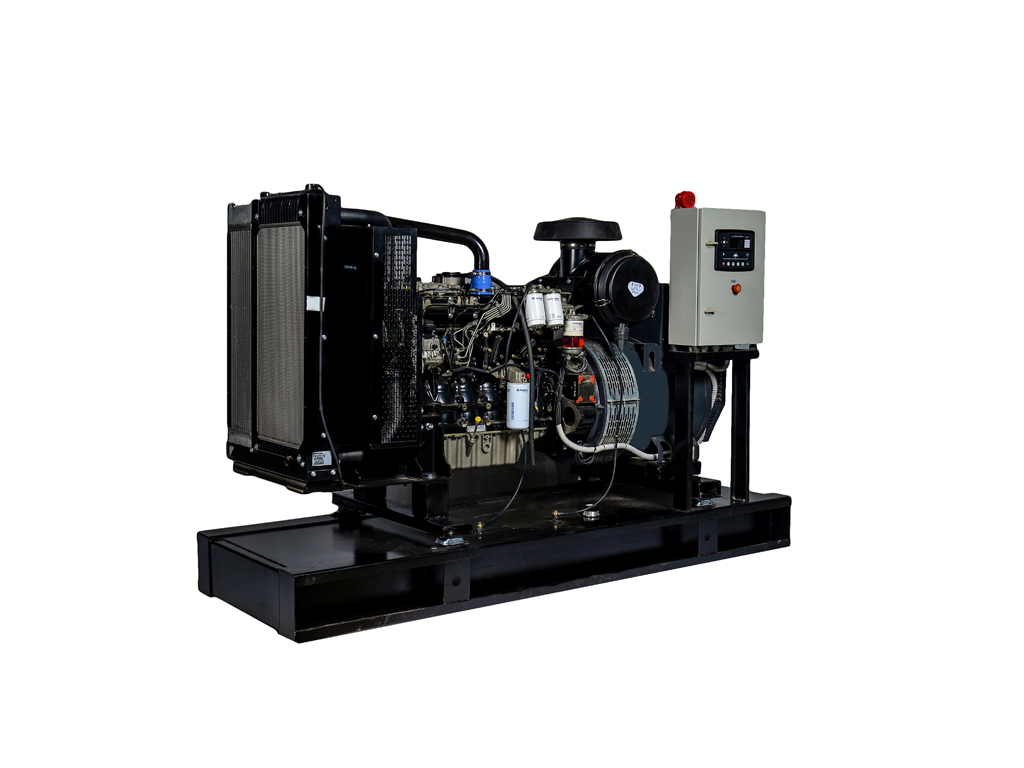

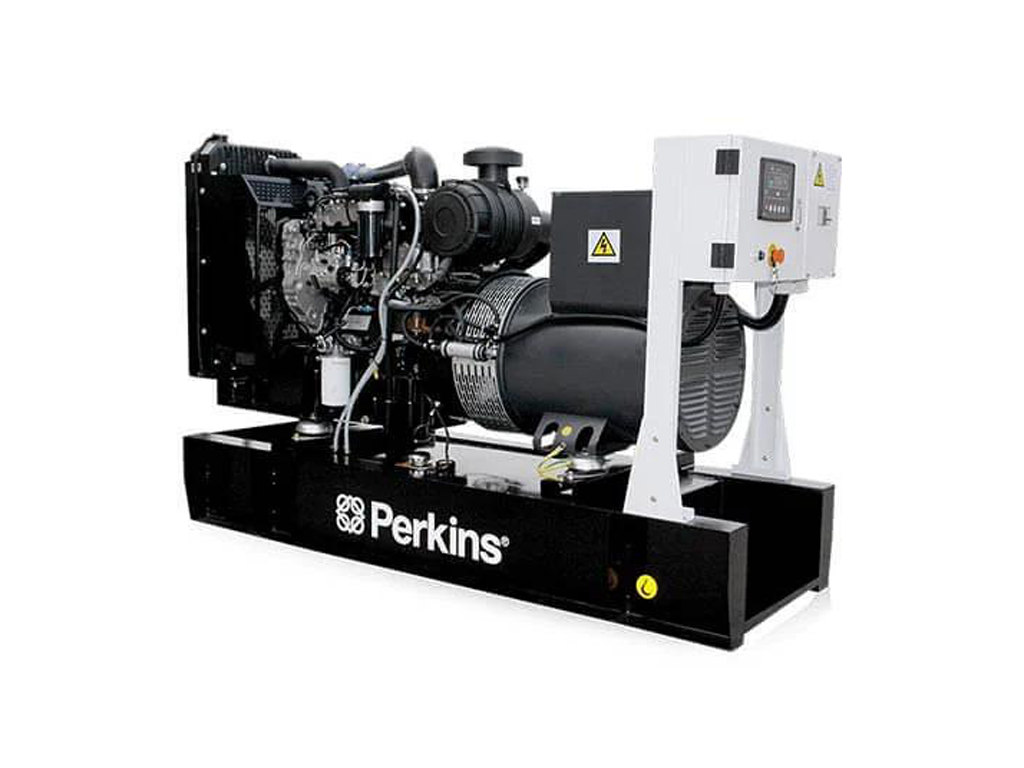

Perkins Diesel Generator Set 20kVA to 2000kVA
- Information
- Technical parameter
The Gold Standard of Engineering – Precision & Power
With over 90 years of manufacturing excellence, Perkins is one of the world’s leading providers of diesel engines. Renowned for its advanced combustion technology and compact design, Perkins engines deliver the perfect balance of performance and efficiency. Our Perkins series (7kVA - 2500kVA) provides a versatile and robust power solution for telecommunications, construction, and high-end commercial applications.
Key Advantages & Technical Features
Exceptional Power Density:
Perkins engines are designed to deliver maximum power from a compact footprint. This allows for smaller overall generator dimensions, saving valuable installation space and reducing logistics costs without compromising on output.
Superior Cold Start & Transient Response:
Engineered with advanced induction systems, Perkins units offer outstanding cold-start capabilities and meet the most stringent G3-class load acceptance standards. They respond instantly to heavy step-loads, ensuring the stability of your critical operations.
Optimized Fuel Economy & Low Emissions:
Utilizing the latest electronic fuel injection systems and combustion chamber designs, Perkins engines optimize fuel consumption across all load levels. They are industry leaders in meeting international emission standards (Stage V/Tier 4 ready) while maintaining high performance.
Quiet & Smooth Operation:
Through precision engineering and optimized block designs, Perkins engines operate with significantly reduced vibration and mechanical noise, making them the preferred choice for sound-sensitive environments like hospitals and residential areas.
Simplified Maintenance & Global Support:
Designed for ease of service, Perkins engines feature single-side maintenance points. With a vast global distribution network, genuine parts and expert technical support are always within reach to ensure continuous uptime.
Perkins Technical Specifications (60Hz / 1800RPM)
| Category | Technical Parameter | Specifications & Features |
| Basic Specs | Rated Frequency | 60 Hz |
| Rated Speed | 1800 RPM | |
| Power Range | 10kVA - 2500kVA (8kW - 2000kW) | |
| Rated Voltage | 208V, 220V, 440V, 480V (Customizable) | |
| Power Factor | 0.8 (Lagging) | |
| Power Quality | Frequency Stability | ≤±0.25% (Steady State) |
| Transient Frequency Recovery | < 1.5 Seconds (Ultra-Fast Recovery) | |
| Voltage Regulation | ≤±0.5% ~ 1% (Depending on AVR) | |
| Waveform Distortion (THD) | < 3% ~ 5% (Total Harmonic Distortion) | |
| Loading Performance | Step-Load Acceptance | Superior ISO 8528 G3 Compliance |
| Transient Voltage Dip | ≤ 12% ~ 15% (Excellent motor starting) | |
| Engine System | Engine Brand | Perkins (UK) |
| Governing System | Electronic / Full Authority Digital (ECM) | |
| Aspiration | Turbocharged & Air-to-Air Charge Cooled | |
| Cooling Method | High-Efficiency Water-Cooled System | |
| Alternator / Control | Alternator Brand | Stamford / Leroy Somer / Mecc Alte |
| Protection & Class | Class H / IP23 | |
| Control Module | DeepSea / SmartGen / ComAp |
1. The above parameters are for reference only and cannot be used as any legal basis in the contract.
2. The manufacturer has the right to adjust or change the above parameters, and the data after adjustment or change will not be notified.
