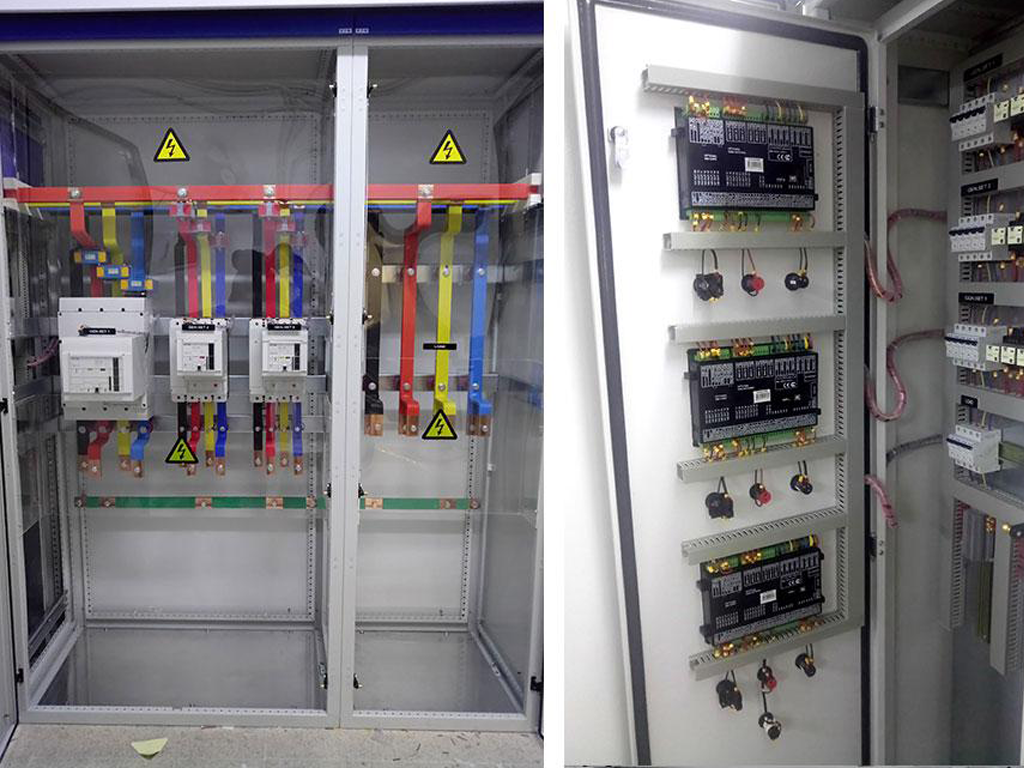

Grid Synchronization Cabinet (Grid Connection Panel)
- Information
Product Overview
The Grid Synchronization Cabinet (also known as Grid Connection Panel or Synchronizing Control Panel) is an advanced electrical control system designed to synchronize diesel generators, renewable energy systems, or hybrid power sources with the utility grid or other generators.
It ensures precise matching of voltage, frequency, and phase angle before connecting to the grid, enabling safe and stable parallel operation of multiple power sources.
This system is widely used in power plants, data centers, hospitals, industrial facilities, renewable energy projects, and large-scale backup power systems.
Product Features
Precise Automatic Synchronization
The system continuously monitors voltage, frequency, and phase difference to ensure safe grid connection only under synchronized conditions.
Multi-Generator Parallel Operation
Supports synchronization of multiple diesel generators working in parallel, enabling flexible power expansion.
Intelligent Load Sharing
Automatically distributes active and reactive load among generators to ensure balanced operation and fuel efficiency.
Grid Protection Functions
Includes reverse power protection, over/under voltage protection, frequency protection, and phase failure protection.
PLC / Smart Controller Integration
Equipped with PLC-based or microprocessor-based controllers for real-time monitoring and automatic operation.
Seamless Power Transfer
Enables no-break transfer between grid and generators, ensuring uninterrupted power supply.
Applications
Diesel Generator Parallel Systems
Data Centers
Hospitals & Emergency Power Systems
Industrial Power Plants
Oil & Gas Facilities
Renewable Energy (Solar / Wind / Hybrid Systems)
Infrastructure Projects
Mining Operations
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | Grid Synchronization Cabinet |
| Rated Voltage | 400V / 230V / Medium Voltage Options |
| Frequency | 50Hz / 60Hz |
| Operation Mode | Automatic / Manual |
| Supported Units | 2–20 Generators (Expandable) |
| Controller Type | PLC / Digital Synchronizer Controller |
| Protection Functions | Over/Under Voltage, Over/Under Frequency, Reverse Power |
| Communication | Modbus / RS485 / Ethernet (Optional) |
| Enclosure | IP42 / IP54 / IP55 (Optional) |
| Material | Cold Rolled Steel / Powder Coated |
| Installation Type | Indoor / Outdoor Optional |
Key Functions
Voltage & Frequency Matching
Phase Angle Synchronization
Automatic Load Distribution
Grid & Generator Switching
Fault Detection & Protection
Real-time Monitoring System
Optional Configurations
Deep Sea / ComAp / Woodward Controllers
SCADA Remote Monitoring System
Touch Screen HMI Panel
Automatic Transfer Switch (ATS)
Redundant Control System
Outdoor Weatherproof Cabinet
Busbar System Upgrade
High Voltage Synchronization Module
Product Advantages
Safe Grid Connection
Ensures synchronization conditions are met before connecting to grid, preventing electrical damage.
High System Efficiency
Optimized load sharing reduces fuel consumption and improves generator efficiency.
Scalable Design
Easily expandable for multiple generator sets and hybrid energy systems.
Industrial Grade Reliability
Designed for continuous operation in harsh industrial environments.
